Compact Fume Filters
Compact Fume Filters
Manufactured in Denmark, these are a complete solution: capturing the gases and particles associated with welding, grinding, and plasma or laser cutting and cleaning the extracted air efficiently. With compressed air cleaning, these filters are able to remove 99.97% of hazardous particles from the air.
From $7424.00
Compact Industrial Fume Filters

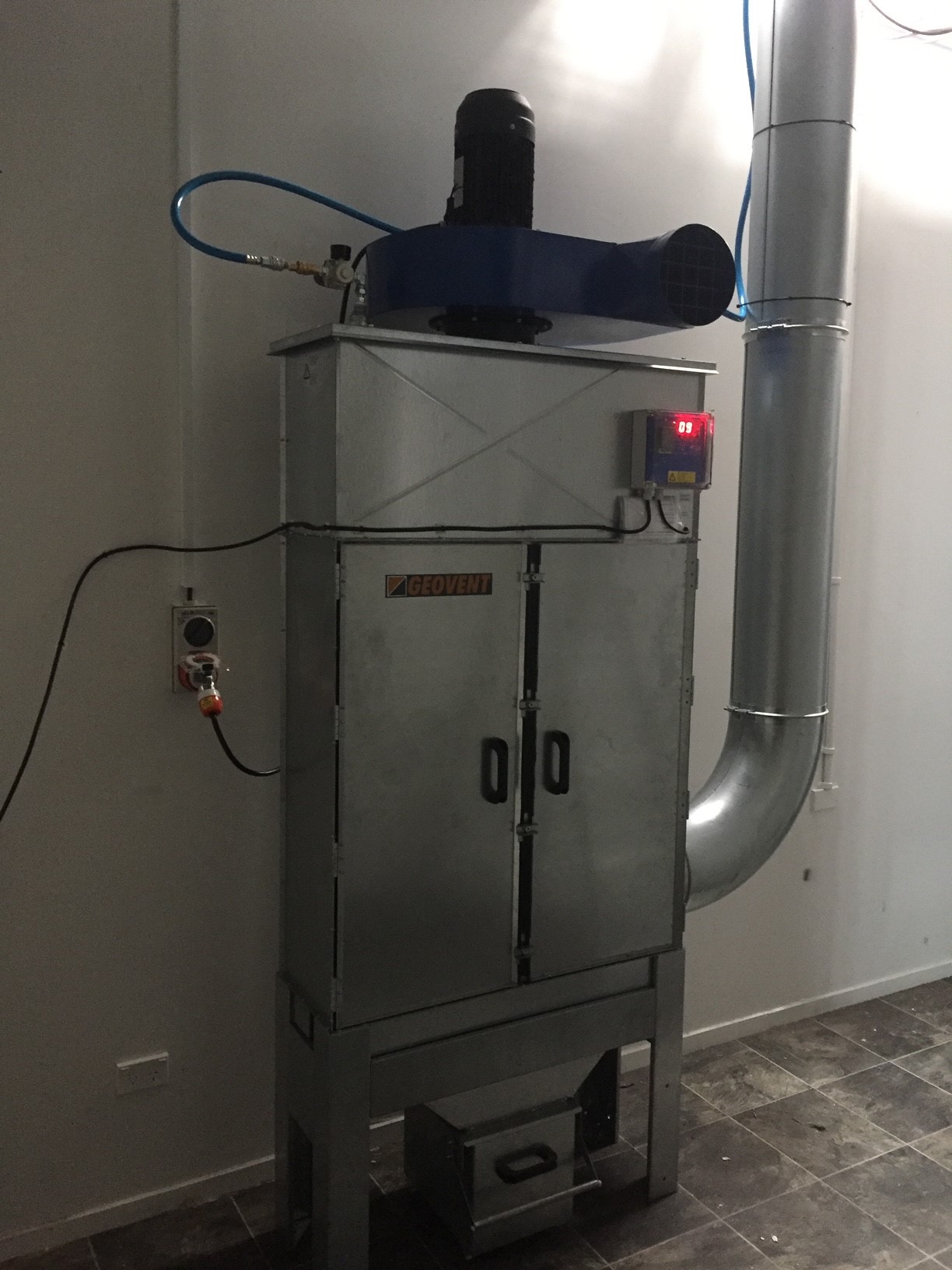

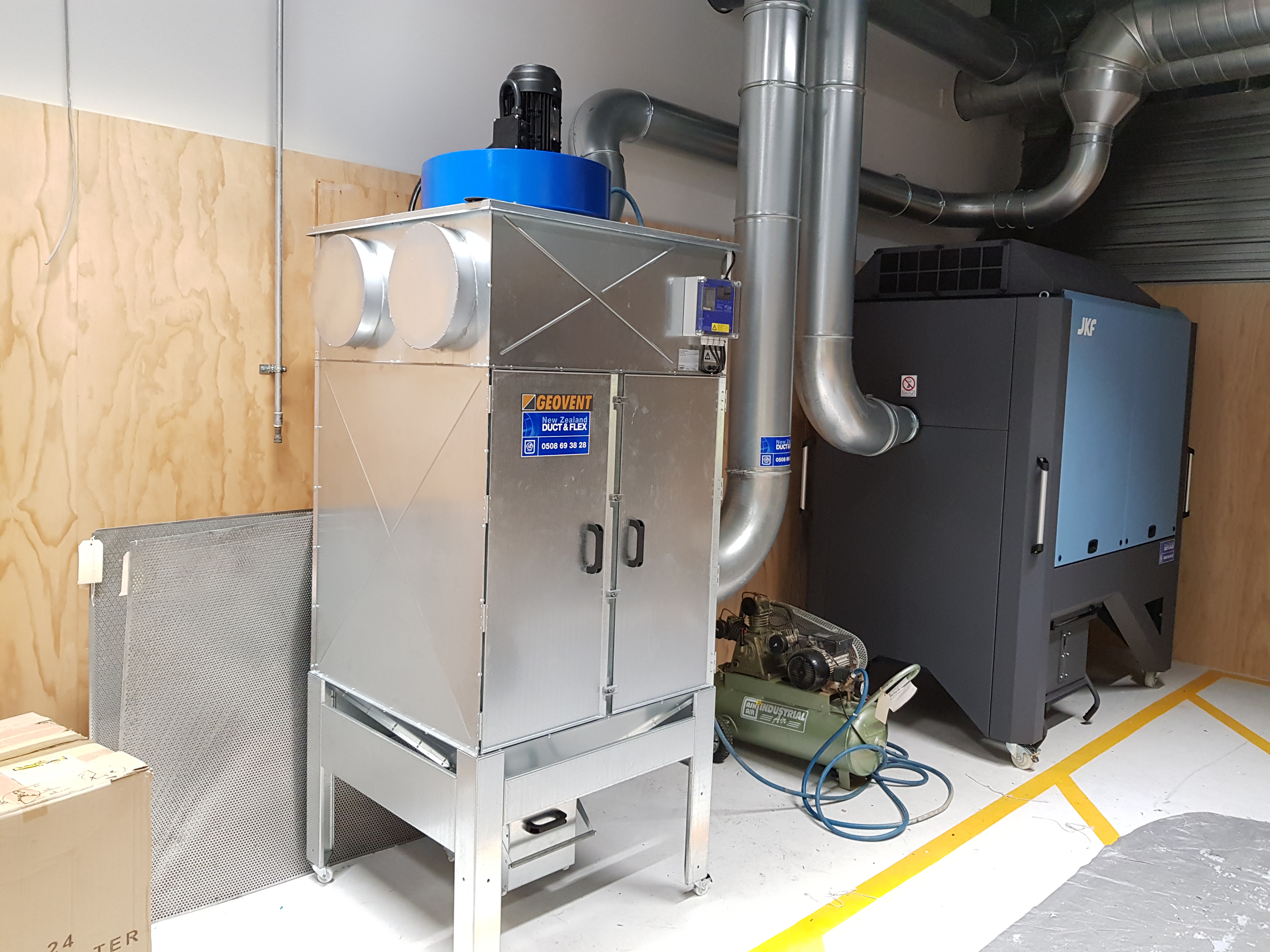

Our range of European manufactured Fume Filters are designed to meet you fume extraction requirements. A top mounted fan enclosed in acoustic box is an option where space is very limited.
- Geofilter SFB3 FumeFilter 30m2
- Geofilter SFB6 FumeFilter 60m2
- Geofilter SFB9 FumeFilter 90m2
- Geofilter SFB12 FumeFilter 120m2
These Compact, Compressed Air Cleaning, Pulse Filters are primarily designed for the capture of welding, grinding and plasma / laser cutting gases combined with small amounts of associated particles and dust.
However, with the correct filters they can deal with a wide range of dust types, but, as can be seen from the size of the collecting bucket, are not suitable for large amounts of sawdust or similar volume dusts.
The filters are able to remove 99,97% of hazardous particles from the extracted air.
The 4 models with 3/6/9/12 filter cartridges are suitable for up to 7,000m3/h of air and fumes, depending on the fume and dust type.

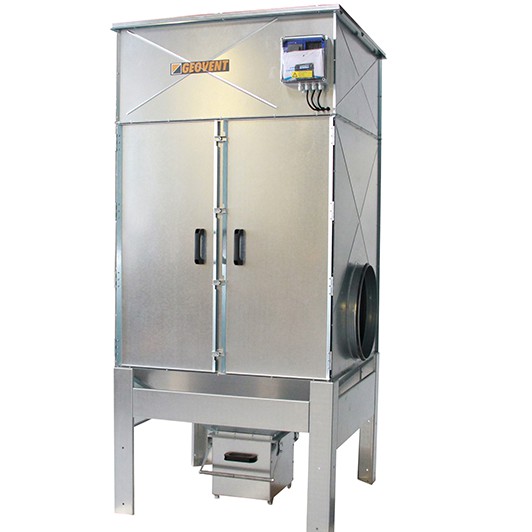

Replacement of the filter cartridges is easy, just open the doors at the front like a wardrobe and remove and replace them.
How do the Compact Fume Filters clean ?
Complete with a simple to use electronic timer to control the pulse cleaning for the cartridges, these fume filters can be connected in parallel, if greater dirty air loads are required now or later.
A dry, clean compressed air supply is required between 3 and 6 bar.
Options included differential pressure sensors to control the cleaning (to save compressed air and upon request) and an easy to move collection bucket.

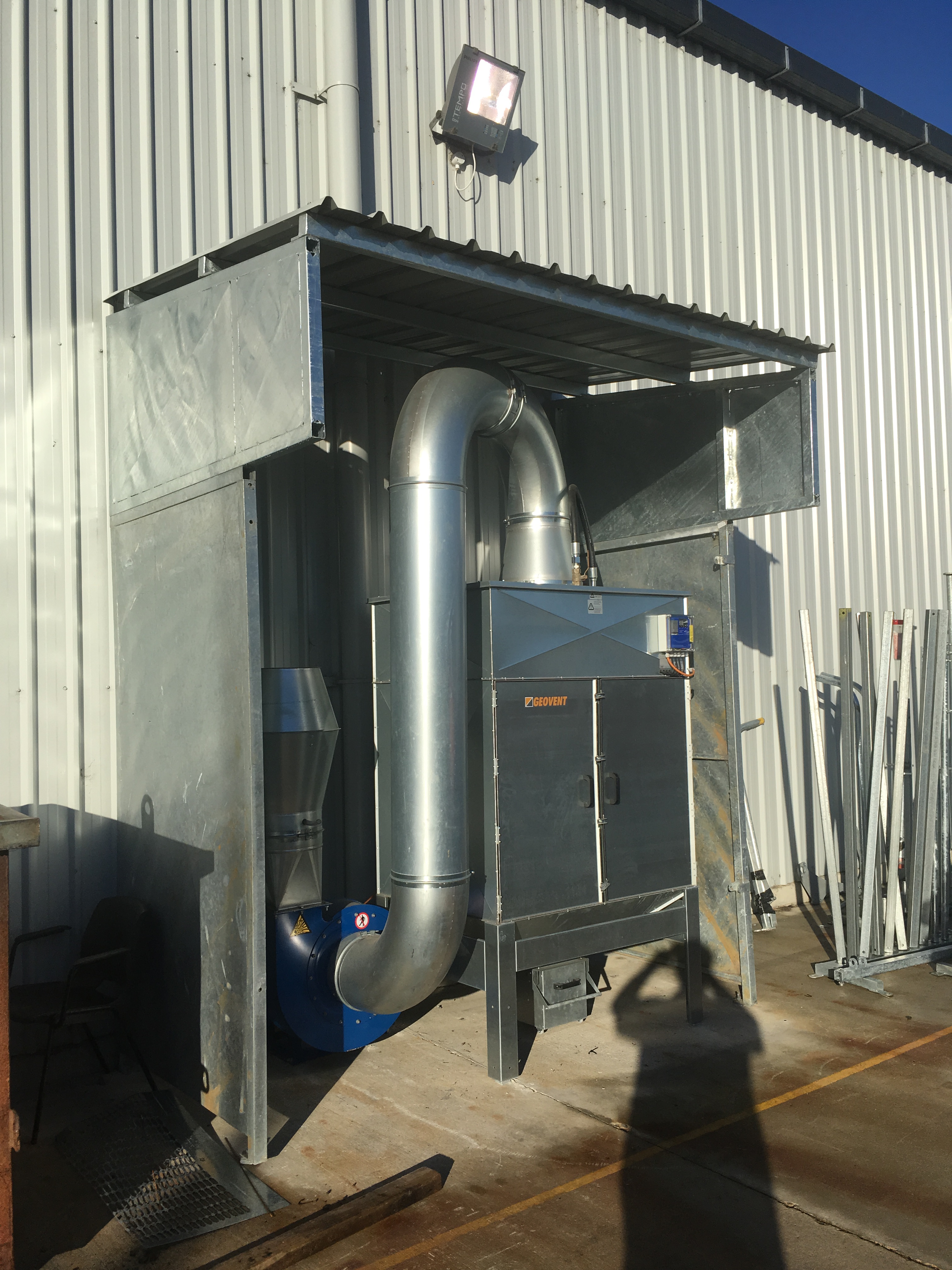

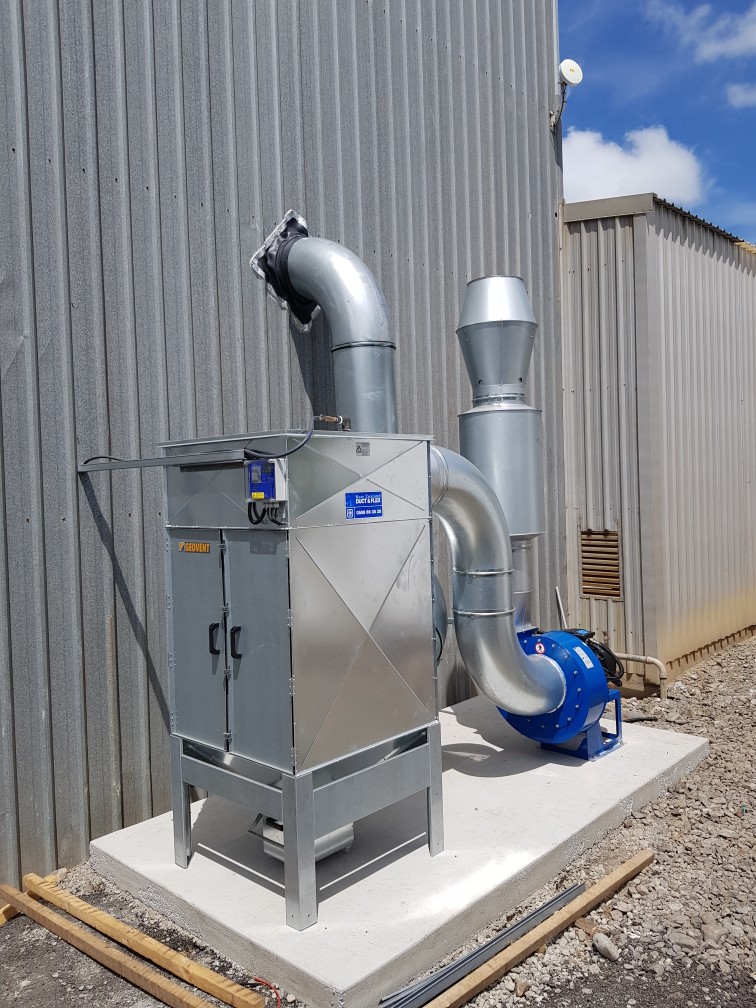

Normally placed inside building they can be located outside using a protective roof to shield the filter from rain but temperature changes, in some parts of the country, can lead to condensation issues if outside in the winter half of the year.
An ideal fume extraction solution when fumes cannot for safety be exhausted to air, speak to us about how this product could help.
Automatic ontrol panel with digital display, for adjutsment of valve time, interval and after run cycle.
There is a deflector in the inlet to diffuse/deflect larger particles thta might otherwise damage the filter media.
Must be sited on a firm stable surface
Relative Humidity must be below <90%
|
GBF2 3-1
|
GBF2 6-2 | GBF2 9-3 | GBF2 12-4 | |
| No. of cartridges | 3 | 6 | 9 | 12 |
Filter type*(other cartridges available - please discuss) |
Standard for fumes* | Standard for fumes* | Standard for fumes* | Standard for fumes * |
| Filter Area | 30 | 60 | 90 | 120 |
| No. shot valves | 1 | 2 | 3 | 4 |
| Max. airflow m3/h (dependent on volume) | 1800 | 3600 | 5400 | 7200 |
| Air tank litre | 4 | 8 | 12 | 16 |
| Filter control with display : Protection Class | IP65 | IP65 | IP65 | IP65 |
| Inlet/Outlet sealing Class | C | C | C | C |
| Collection bucket litre | 25 | 25 | 25 | 25 |
| Galv. cabinet corrosion class | 111 | 111 | 111 | 111 |
| Air supply bar (clean and dry air) |
3-6
|
3-6 | 3-6 | 3-6 |
| Air useage l/m per valve | 3.0 | 3.0 | 3.0 | 3.0 |
| Power supply |
24V DC or 230V AC |
24V DC or 230V AC | 24V DC or 230V AC | 24V DC or 230V AC |
| Temperature tolerance deg. C | -12 - +65 | -12 - +65 | -12 - +65 | -12 - +65 |
| Typical pressure drop Pa | 1000-1500 | 1000-1500 | 1000-1500 | 1000-1500 |
| Noise level | <68 | <68 | <68 | <68 |
| Height x Depth x Width mm | 2036 x 423 x 933 | 2036 x 633 x 933 | 2036 x 933 x 933 | 2036 x 933 x 2312 |
| Min. free height above filter mm | 800 | 800 | 800 | 800 |
| Inlet dia. | 200 | 250 | 300 | 400 |
| Outlet dia. | 200 | 250 | 300 | 400 |
Call 1800 370 846 for more information.
