VARIpulse™ Technology for Energy Efficient Dust Extraction Systems

Unique to EBCAM: save money and energy use with efficient sensor cleaning!

Unique to EBCAM: save money and energy use with efficient sensor cleaning!

Adding many cheap trolley filters are NOT the cheap option: they increase power costs - a better solution is ONE properly sized dust extraction filter

Adding many cheap trolley filters are NOT the cheap option: they increase power costs - a better solution is ONE properly sized dust extraction filter

The World's Most Energy Efficient Dust Extraction Sytems



Energy challenges facing Dust Extraction Systems

There are several key areas that directly affect the energy costs associated with running a dust extraction system:

  • Compressed Air Consumption - many conventional pulse filters use continuous compressed air supply increasing your energy bills, regardless of whether the filter socks need cleaning or not
  • No adjustment to air flows for the fans, related to the airspeed ductwork requires ie. they pull the air too fast - (a waste of energy), or too slowly (causing dust to settle in and even block the ducts) forcing the fan motors to work harder.
  • New, more efficient machines being added without the overall dust extraction solution air volumes being recalculated by a dust expert - meaning larger volumes of dust are produced which the current fans cannot cope with and have to work harder
  • Undersized filter area chosen for the dust filtration unit sold with a larger fan, to push the air through the filter socks - leading to blocked  filters with no suction despite fan working at max. capacvity - so called experts will often try to tell you that the solution is buy an even bigger fan! This will increase your electricity bill further and block the socks even more qyuickly! Beware - and contact a reputable company who specialise in dust extraction!
  • Adding more 'trolley/mobile' dust extractors - simple rule - one properly sized BIG filter, placed outside, will always be cheaper to run, (and protect your staff better), than multiple mini sized cheap trolley/mobile filters that emit the dangerous very fine dust anyway



VARIpulse™ is revolutionary for Dust Extraction Systems

Our European designed and manufactured VARIpulse™ filters are the most ENERGY efficient (and SAFEST) filters available worldwide.

The VARIpulse™ cleaning system regulates not only the frequency, but also the power, of the pulse cleaning system for your dust extraction unit.

How can VARIpulse™ save you energy?

  • The filter sock cleaning by compressed air is controlled by an automatic sensor
  • Cleaning only occurs when VARIpulse™ sensors detect that the filter bags need pulsing, instead of a fixed every 30 seconds or so, which is the system found on most other dust filters.
  • Less energy is required to clean the bags and VARIpulse™ saves between 50-90% of compressed air consumption – therefore less load on your compressor!

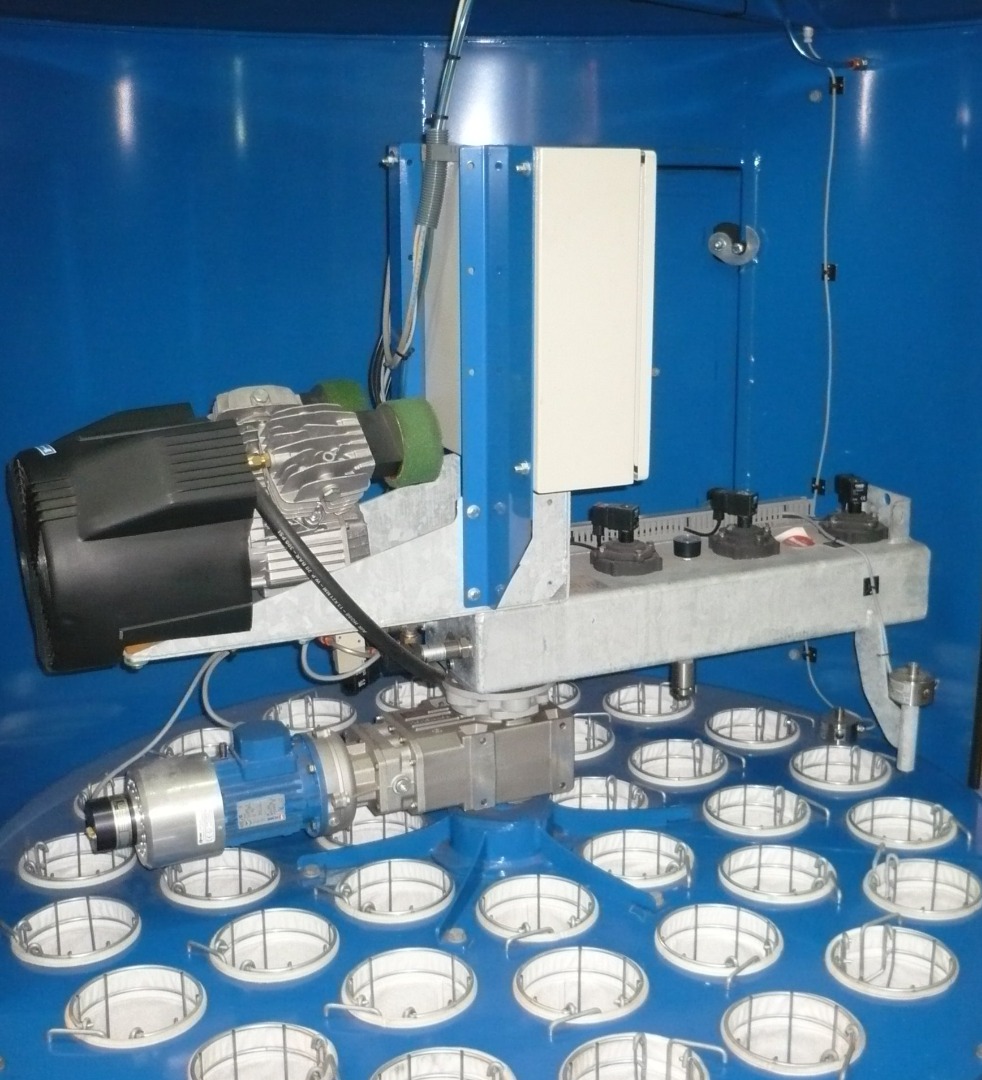

VARIpulse cleaning system sensing pressure loss in each individual sock

VARIpulse cleaning system sensing pressure loss in each individual sock

VARIpulse display screen showing  in time pressure  1.5-5bar

VARIpulse display screen showing in time pressure 1.5-5bar

How VARIpulse™ optimises Dust Extraction Systems

  • When pulse cleaning takes place, each bag is cleaned individually. This is unique to the VARIpulse™ system, saves compressed air, and introduces the cleaning pulse at exactly the correct point above the filter sock.
  • This ensures evenness of cleaning action across EVERY bag in the dust filter.
  • Whilst cleaning individual bags, the VARIpulse™ sensors also measure the air flow through the filter socks and adjusts the pulse forces between 1.5bar and 5bar. Not a standard 8bar set for many dust extraction solutions. This saves another 40-60% of compressed air.
  • Because the filters are all uniformly cleaned and operating at maximum efficiency, the pressure loss through the filter is maintained at optimum levels, to ensure minimal load on the extraction fan and compressed air motors.

Energy and Cost savings achieved by VARIpulse™

Compressed Air Reduction:

  • Up to 50-90% of compressed air savings are made with this system
  • Typical cost savings will depend on the size of your facility and dust type and loads, however generally a dust extraction solution that includes VARIpulse will pay for itself over time

Extended filter life:

  • The optimised cleaning extends filter sock life!
  • This single bag cleaning approach means there is uniform cleaning across all filter socks - not an all-or-none approach of conventional pulse systems
  • The bags only receive a pulse IF they require cleaning ie the measured pressure loss is above a targeted value for the dust type and sock
  • The pulse varies 1.5-5 bar ie adjusts to that specific sock, ensuring the sock material is not subjected to excessive mechanical stress when it may not need cleaning at all

Operational Efficiency:

  • Consistent performance results ie  good suction continually across whole filter area as all filter socks are being pulsed depending on actual cleaning requirement
  • Minimal down time for maintenance due to pressure loss issues - ie no blocked socks!
  • Reduced load on fan as operating efficiently
  • Self monitoring capabilities results in engineering staff quickly seeing system is operating at max. performance

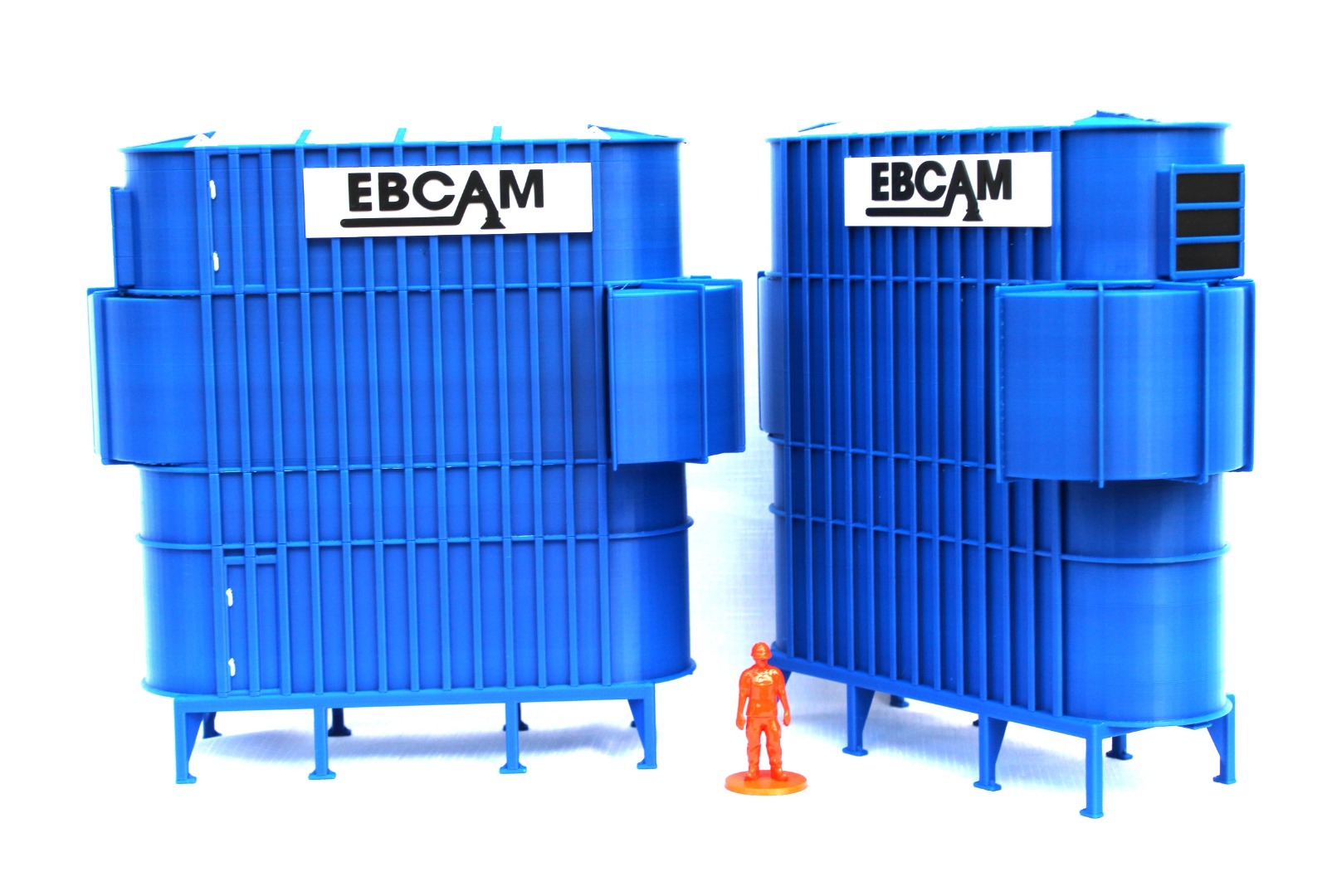

Advanced  Technology - our  range includes several VARIpulse filters

Advanced Technology - our range includes several VARIpulse filters

Maximise Your Energy Efficiency with VARIpulse™!

EBCAM have adopted the advanced technology available from their European supplier to ensure dust control solutions are the best available to their client. These tried and tested dust extraction solutions are sold in their 1000's all over the world and allow the supplier to pass on the benefit of economy of the scale of their Scandanavian manufacturing facility.

Due to the scale of the Danish operation, Ebcam's advanced technology solutions often do not cost more than a bespoke solution designed for a specific customer's site, that relies on 50 year old concepts with no new features!

Ebcam can offer Australian manufacturing and processing facilities

  • enhanced performance
  • safer dust extraction solutions
  • and energy efficiency, due to their supplier's unique feature VARIpulse™.



Two of the most important advances in dust extraction technology since the 1970's have been in explosion relief and energy savings, especially savings resulting from reduced use of compressed air with unique advanced cleaning systems.

See the Ebcam dust extraction filter range and learn more about how these advanced technologies: VFV™ and VARIpulse™ can assist your workplace to be compliant with the latest features available worldwide!

Our staff are visiting manufacturing and processing facilities every week and know the signs of poor dust extraction design - Contact Us to discuss your dust issues and get the best advice!

Effective Dust Extraction Solutions are the result of a broad knowledge of air volumes and dust loads/filter media, and should include knowledge of the latest technology and features available - Ask us how our unique features can be a benefit to your dust solution.
