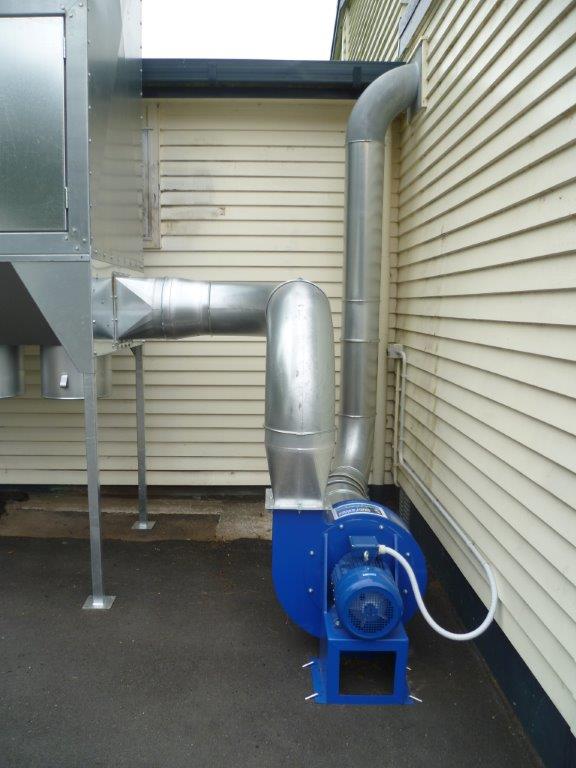

Material Handling Fans
Models in stock : JK 22D to 40D (2,000-10,000m3/hour) for a lesser volume of material

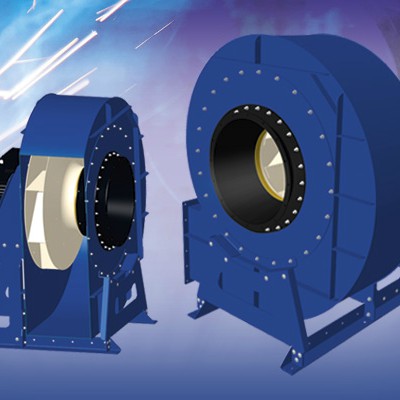

JK 60MTDP to 90MTDP (10,000 - 77,000m3/hour) available to order. These are ideal for transportaion of wood chips as well as dust.
• Direct Drive Centrifugal fans designed for material handling
• Self cleaning impellors
• Backward inclined blades and aerodynamic intake
• Impellors are statically and dynamically balanced
Max. operating temperature 60oC
Highly efficient European standard IEC3 motors
For models JK 22-40D Fan cuves and noise level data for individual models available on request.
For models JK 30MTDP- 90MTDP individual Technical Specifications available on request.
All fans manufatured in Scandanavia.
Motor mounted on foot.
| Fan JK 22D | Fan JK 25D | Fan JK 30D | Fan JK 35D | Fan JK40D | |
|---|---|---|---|---|---|
| Nominal Air Flow m3/h | 1000 - 3100 | 1500 - 4500 | 2500 - 6500 | 3000 - 8500 | 5000 - 11000 |
| Power kW | 2.2 | 4.0 |
5.5 / 7.5 |
11 / 15 | 18.5 / 22 |
| Motor hp | 3.0 | 5.5 |
7.5 /10.0 |
15.0 / 20.0 | 25.0 / 30.0 |
| Power Supply V/Hz | 230 /50 | 400 /50 | 400 /50 | 400 /50 | 400 /50 |
| Amps | 8.0 | 7.7 | 11.1 / 14.7 | 21.2 / 28.2 | 34.4 / 40.0 |
| Protection | IP 55 | IP 55 | IP 55 | IP 55 | IP 55 |
| Inlet dia. mm smooth (external) | 225 | 250 | 300 | 350 | 400 |
| Outlet dia. mm (internal) | 166 | 186 | 206 | 225 | 251 |
| Height mm | 564 | 657 | 708 | 808 | 826 |
| Width mm | 552 | 618 | 676 | 770 | 824 |
| Weight (without motor) kg | 34 | 45 |
50 | 73 | 88 |
| Weight motor kg | 14 | 31 |
43/49 | 69/83 | 87/165 |
Call 1800 370 846 for more information.
