Reels

Our Garage Reel systems for vehicle exhaust fume extraction, are an ideal solution for:

• vehicle service sites
• car showrooms
• vehicle maintenance workshops where fumes must be captured to protect staff and/or customers.

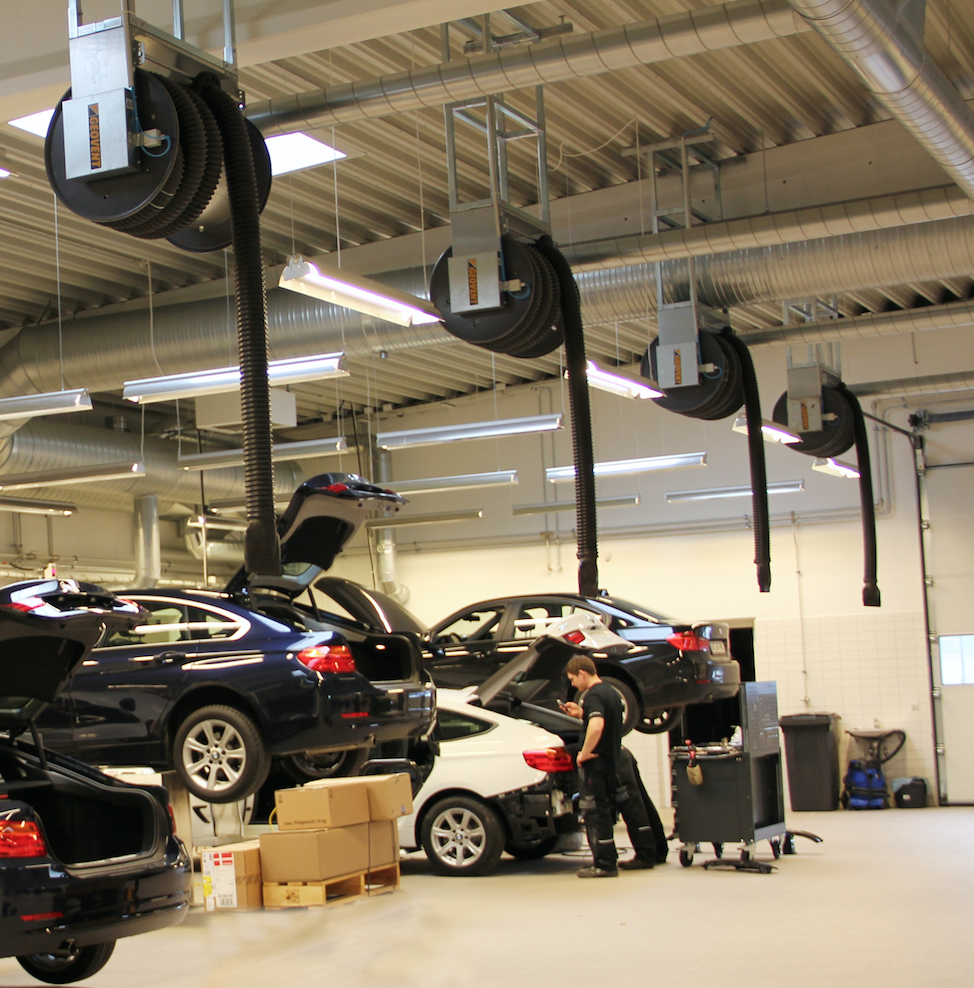

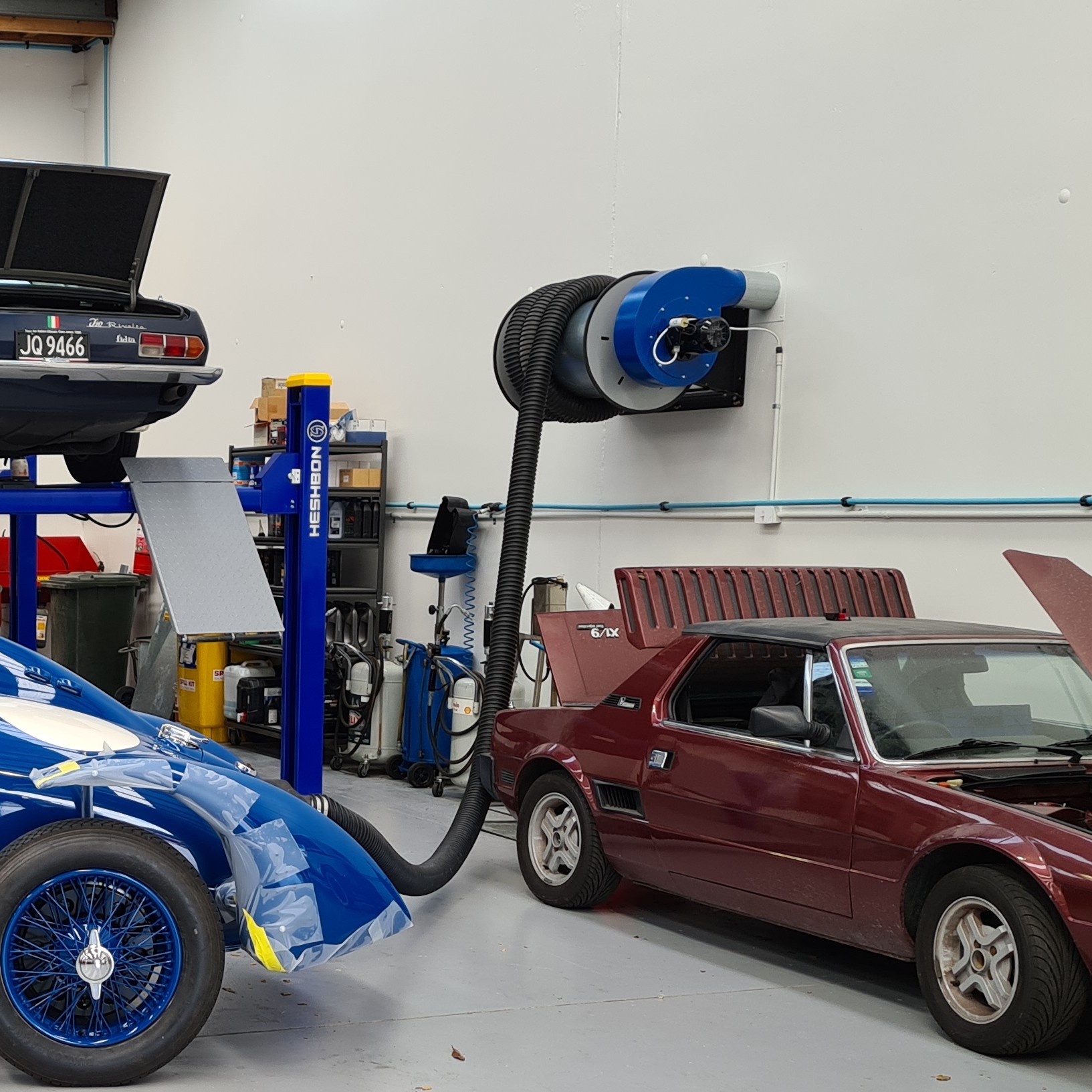

The reels can be at roof height, against a wall, or for infrequent use, be mounted on castors as mobile units.

Installing a reel system creates a safer working environment by neatly storing the flex when not required, and although our garage flex is crush-recoverable, a reel protects the garage flex from unnecessary wear and tear when not in use.

The  flex can be rewound onto the drum (max. length 10m) and/or the electric motor driven recoil mechanism allows any desired length of flex to be kept ready for use.

Garage flex dia. options available 100mm, 150mm ID, tolerance 150^oC - to 170^o C (intermittently)

Supplied with electrical power/rewind with wall switch.

• Can be mounted on the wall or under the roof or even on wheels
• A FumeArm fan can be mounted directly onto reel to save space and installation time
• Optional Nozzles are available to suit most vehicles from Mini’s to tractors and military tanks

REELS

Manufactured in Europe, our reels are constructed from powder coated welded steel with a galvanised sheetmetal drum.

GARAGE FLEX/HOSE

Manufactured in Germany, the flex wall is a TPE coated Polyester fabric (black) while the helix is PA 6.6 and there is a high profile wear strip to protect the flex as it is dragged over a workshop floor. This specialist flex has excellent chemical resistance: especially for oil and  petrol fumes and is crush recoverable

 FANS

SEE FUMEARM FANS to fit to your reel

0.75kW fans can be mounted directly onto the reel or situated seperately in the installation

NOZZLES

A wide range of sizes and types are available including Kevlar flexi grips. Contact us for details.
