Welding Centre with Filtration
Welding Centre with Filtration
Ideal where industrial continuous welding is occurring - save on installation costs!
This European manufactured all in one unit filters air pollutants via a 2 stage filter system

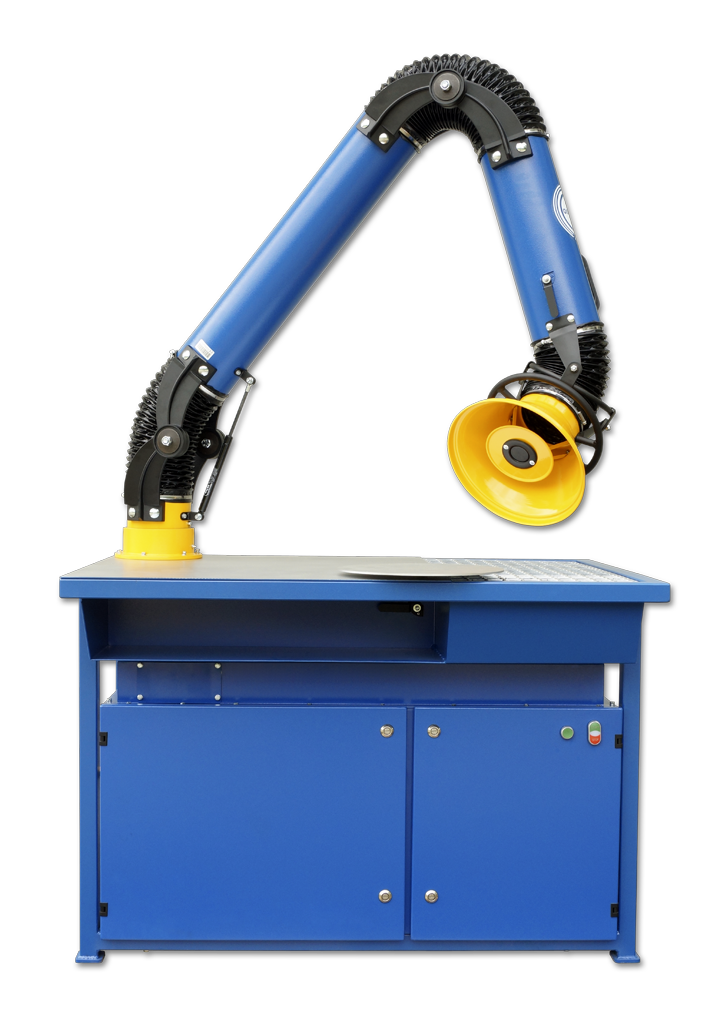

1 The Fume Arm captures the rising welding fumes - our Fume Arms are 4x more efficient than others available
2 The Downdraft captures heavier dust and particles
- Heavy duty powder coated steel - work bench surface conductive, coated and corrosion resistant
- Built in Fan 1.1kW , aluminium blades removes impurities before releasing air back to the work area
- Choose 160mm dia Fume Arm metal, 2M REACH - airflow 1000m3/h or 3m arm if preferred (ask for quote for 3m Arm)

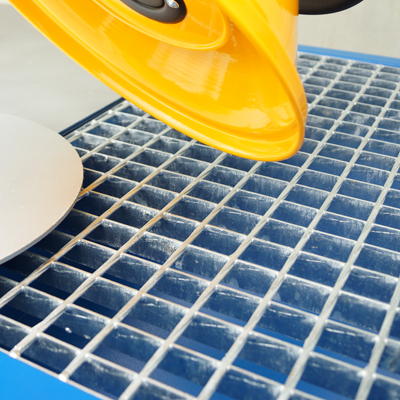

- Revolving table for small work included
- Dampers in table and fume arm
- Grounding connection available both sides
- 120kg, LxDxH 1230 x 844 x 863 mm
- 230V single phase
Filtration :
Filter 1 - Metal mesh spark filter
Filter 2 - Cartridge - in stock for replacement as required
SF-1000
| Arm (As standard) | 160mm dia |
| Arm reach |
2m 3m arm additional price |
| Nominal air flow | 1000m3/h |
| Power supply | 230V |
| Motor power | 1.1 kW |
| Noise level at 1m | 73 dB(A) |
| Dimensions | 138 x 90 x 110 cm |
| Weight | 240 kg |
FILTER CARTRIDGES
| Cartridge type | Filter type | Filter class |
| Pre-filter | Metal | Coarse 30% (G2) |
| Main filter | Cartridge | Dust class M |
Call 1800 370 846 for more information.
