Our Modular LIPLOCK^R ducting system can easily be connected at installation with the range of connectors below – and easily un-locked for inspection, cleaning, or re-use in a new duct layout if machines have changed position.

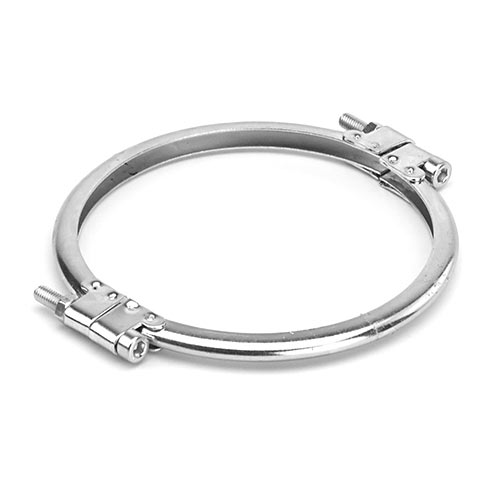

• Standard Locks are  low cost, slim fitting,  and sold as 2 halves ( nuts and bolts included)

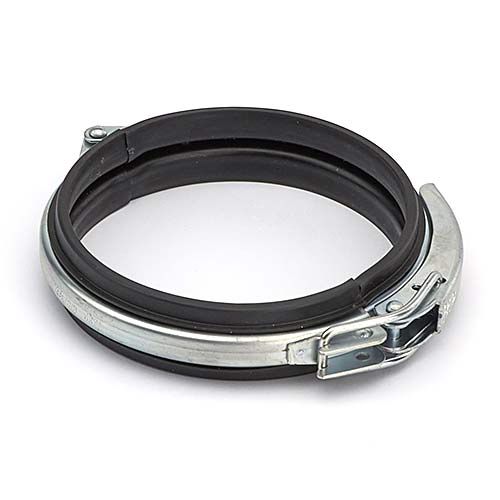

• Lever Locks are ideal if a section of duct will be taken part regularly for inspection or cleaning – or maybe the connectors for a ‘problem’ bend would be easier and quicker to undo if a lever Lock rather than a standard lock is used.

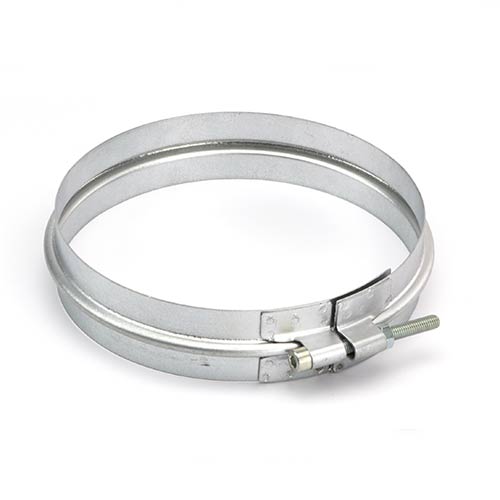

• Wide Locks are used for larger duct diameters, as when the diameters increase, so does the weight of the duct run. WideLocks help give more support due to their width, either side of the join.
WideLocks rather than Standard Locks for diameters over 200mm – especially for a horizontal duct run.

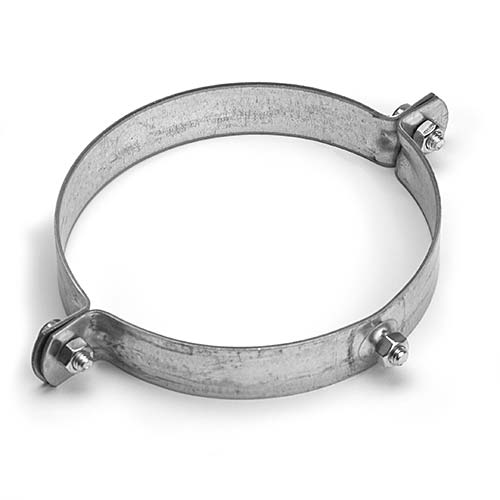

• Hanging Brackets  bolt together aropund the duct that can then be hung with 8mm threaded rod or connected  to legs ( optional extra) for a wall or floor mount
