VFV Vertical Flameless Venting Technology for Dust Extraction Systems

Unique in the Australian market - the safest explosion release available

The World's Safest Dust Extraction Systems with VFV Protection

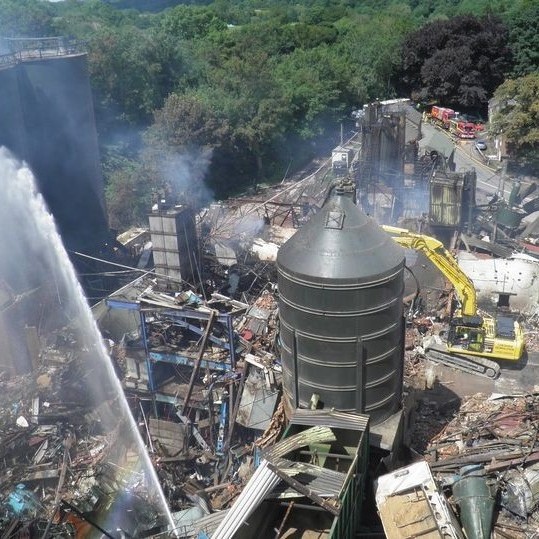

10 years ago, in the UK, a flooring company in Cheshire experienced an explosion. The nature of their production, (wooden flooring), made it a dusty business, but on that Friday morning, an explosion totally destroyed the factory and left 35 staff in hospital.  Three 'missing' employess were found in the rubble days later as the clean up progressed: a 38 year old staff member was never found, due to the 1000+degC temperatures reached in the explosion, and resulting fire.

Dust extraction systems with some level of explosion protection is critically important in any dust handling industry. All dust extraction systems are handling potentially explosive dust, the risk is recorded on a scale: Aluminium dust at the top - 4x as explosive as wood dust.

Not including explosion protection in the design and install of your dust extraction system can be likened to driving down a motorway with no seatbelt. You do not know when the accident is going to happen.

VFV is a revolutionary solution for safer dust extraction systems.

Side Venting filters require an exclusion zone to be safe. The solution is to choose unique Vertical Flameless Venting (VFV) for safety, compliance and practicality.

Ebcam's Unique offering:

Ebcam Dust&Fume offer a completely unique safety feature for dust extraction systems both in the Australasian market, and globally.

Our VFV is the safest explosion release available as it is the only type that achieves vertical and flameless venting.

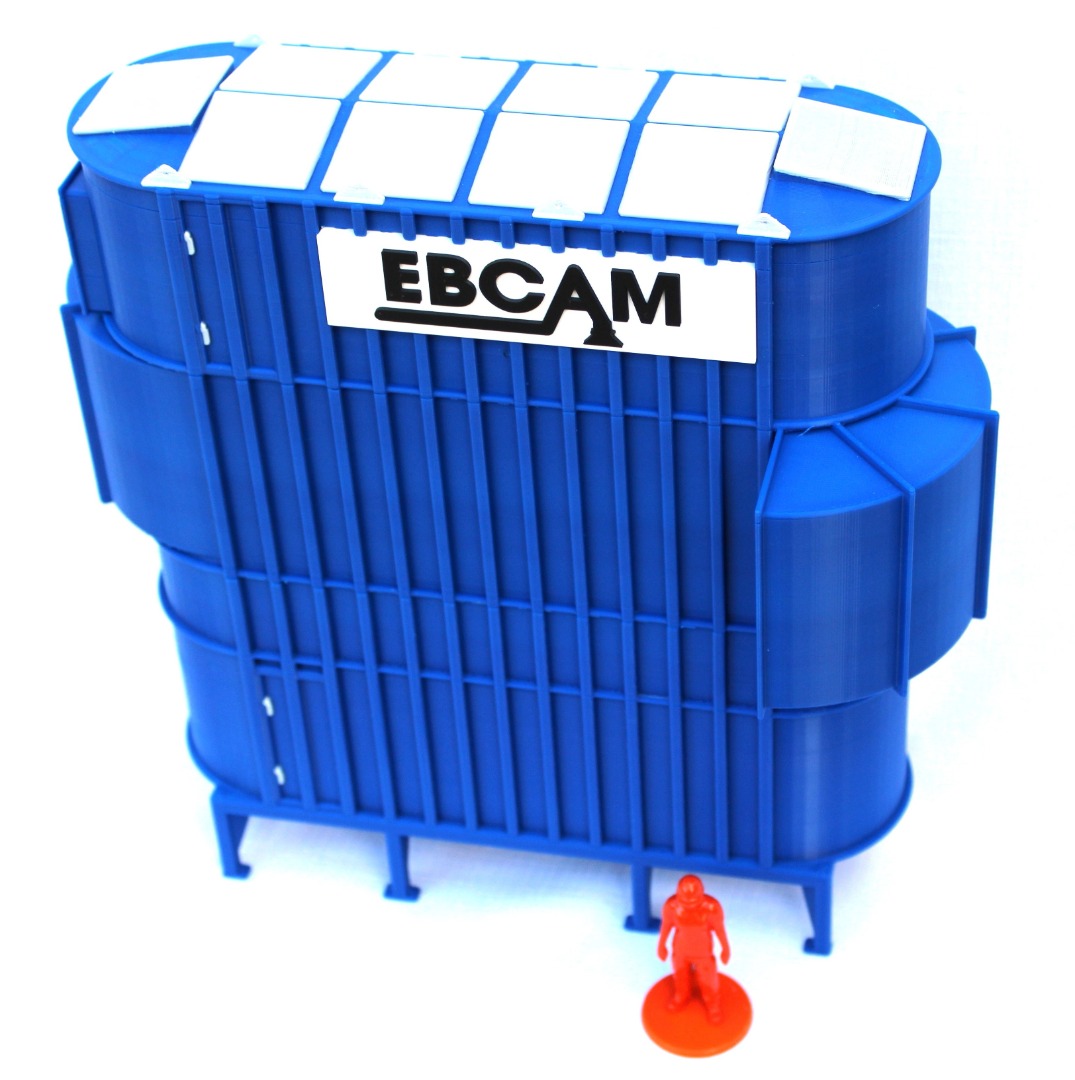

• Placing the explosion membrane on the roof of the filter ensures no one can be harmed other than an unsuspecting seagull. The explosion force is VERTICAL.
• Many dust extraction providers promote their explosion membranes as being safe dust handling practise, however only VFV™ from Ebcam with flameless venting no flame is released from the unit: any fire is contained within the filter itself and only the shockwave is actually released via the ATEX approved vent.
• Safe membrane explosion release is not about retro fitting a panel to an existing  outdated filter unit. Safe membrane release requires the entire filter unit, with it's associated release membrane, to be designed as a cohesive unit and strong enough to withstand any explosion, with out panels and nuts and bolts being launched into the air harming anything in their path.

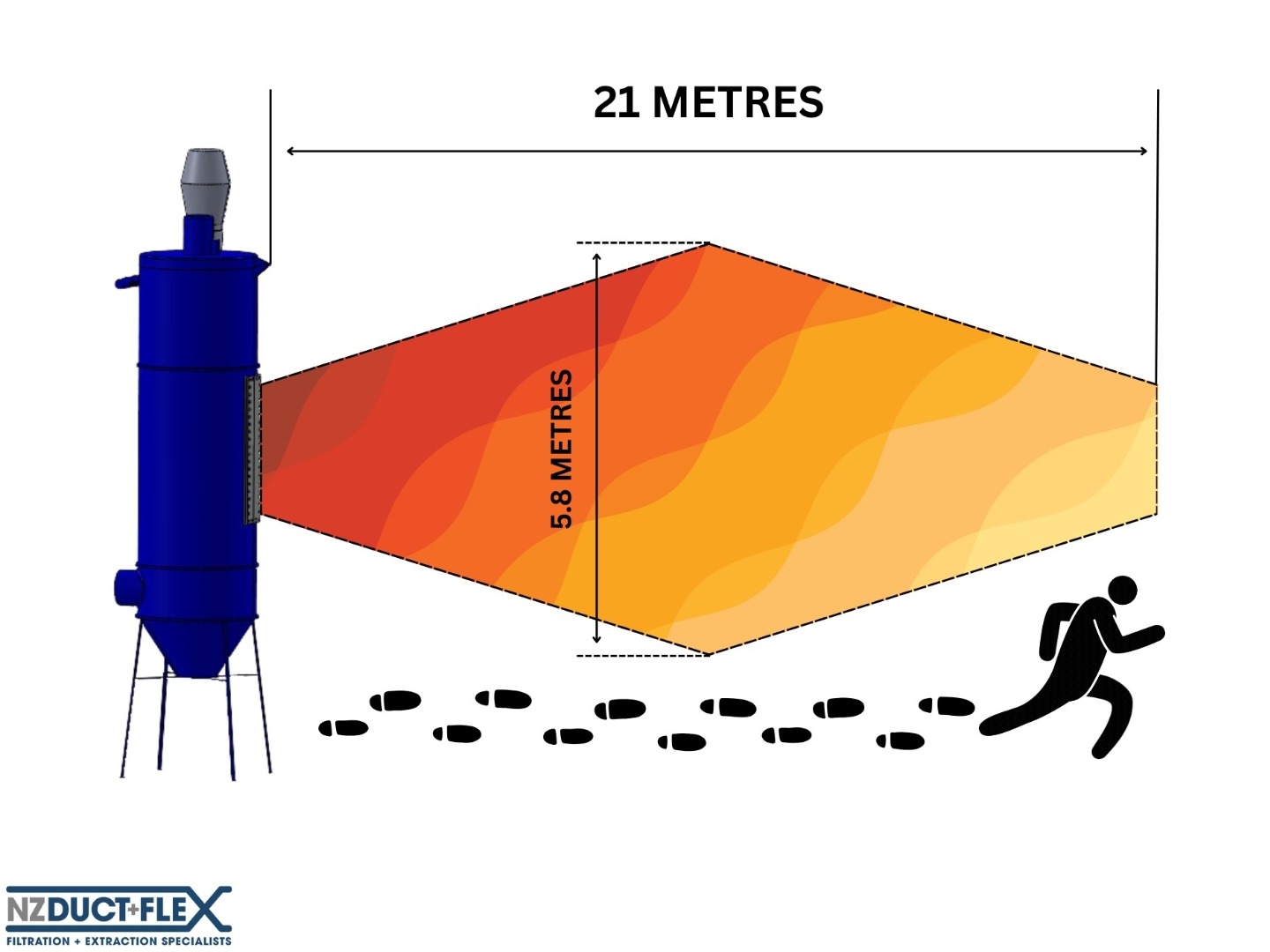

• Venting via an explosion membrane on the side of the filter unit is common practice. To correctly follow safe work procedures, an exclusion zone should be marked up and enforced, directly in front of the explosion release panel for a minimum distance of 20m. Frequently ignored when dust extraction solutions are designed and the filter position is confirmed, this means an explosion membrane may face a car park, a building with glass windows, both putting unsuspecting passersby at risk, in the unlikely event.

• Why choose VFV for your dust extraction system ?

  • Dust extraction systems with vertical venting eliminate workplace hazards
  • Require no exclusion zones around the dust extraction system
  • Contain flames completely with in the dust extraction system
  • Your dust extraction system will meet the strictest international standards

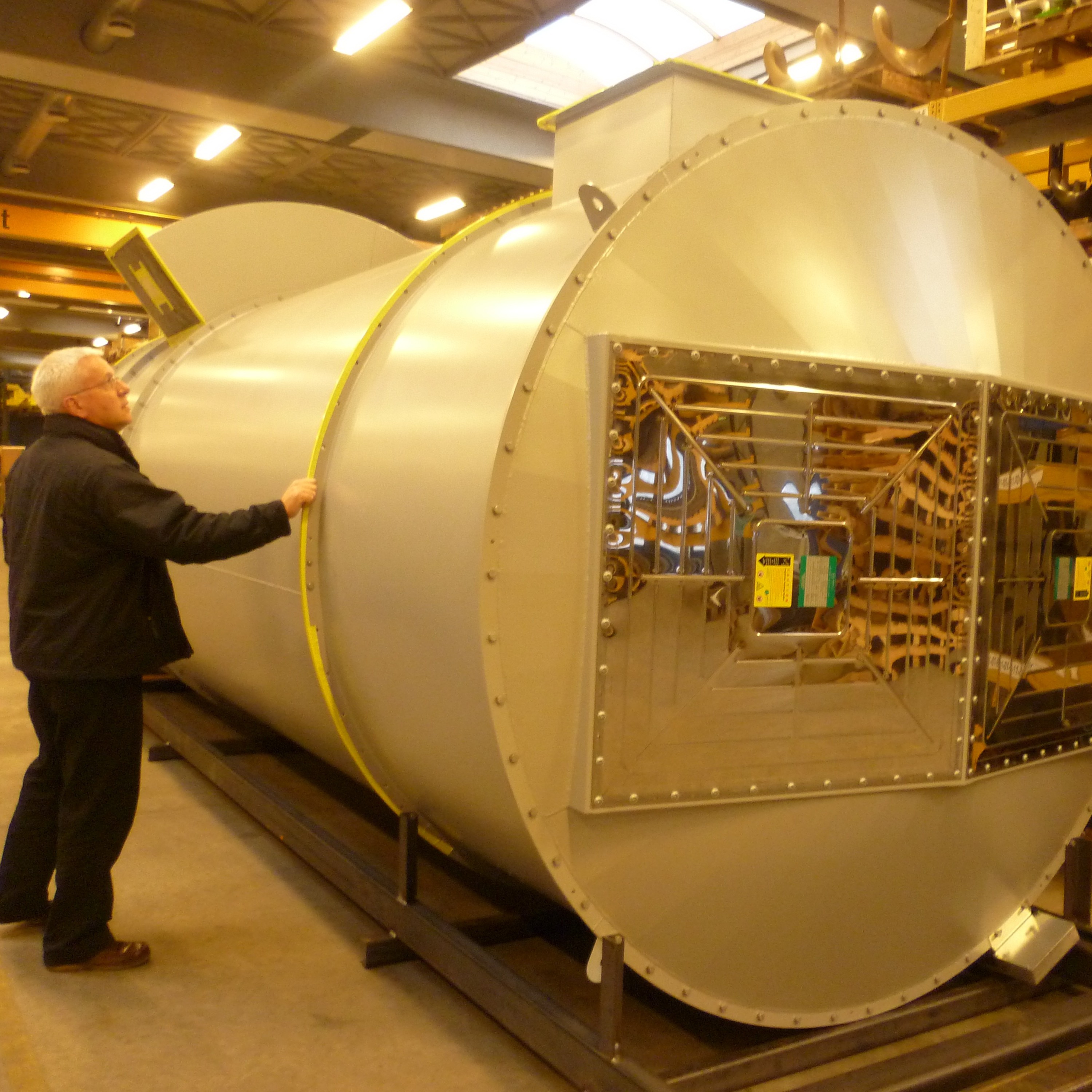

VFV Flameless Explosion relief via ATEX panel : certifed by FSA German Testhouse

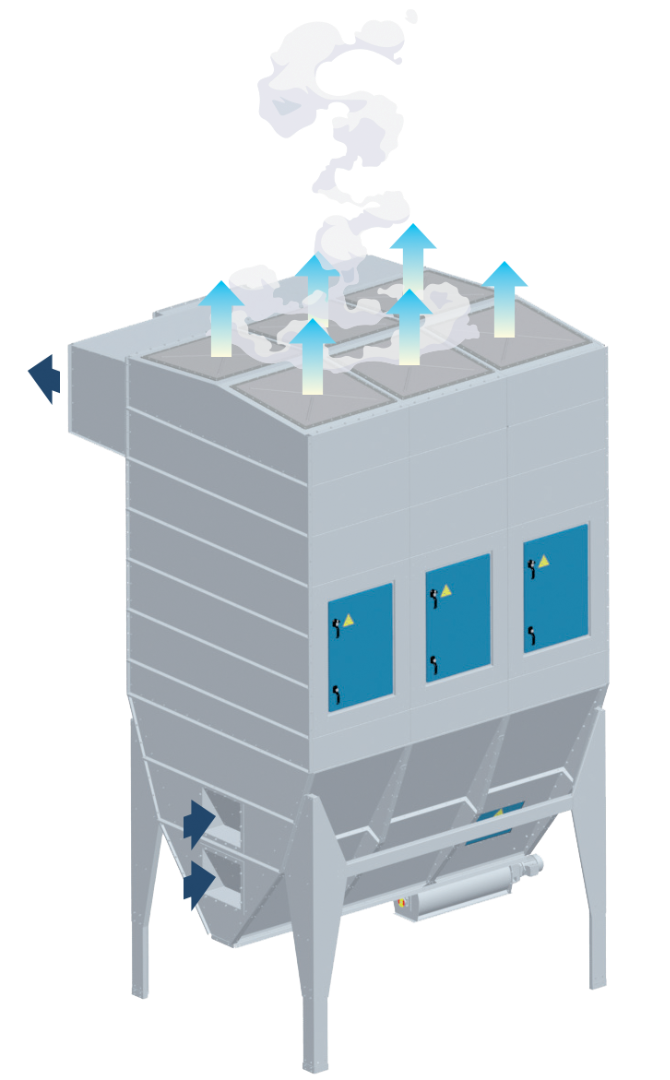

How VFV works in Dust Extraction Systems!

VFV Integration in Dust Extraction Systems

EBCAM have adopted the advanced technology available, VFV,  from their European supplier to ensure dust control solutions are the best available to their client. One of the most important advances in dust extraction systems since the 1970's has been the development of safety release systems by major European  dust extraction specialists. Ebcam's advanced technolgy solutions often do not cost more than a bespoke solution designed for a specific customer's site, that relies on 50 year old concepts with no new features!

The VFV built into EBCAM dust extraction systems is part of the  whole product design. The feature is certified by the German Testhouse FSA - one of the few facilities available worldwide accredited to carry out this scale of testing for ATEX approval.

Demand a 21st C solution : VFV with Vertical Flameless Venting is the safest dust explosion release available in todays market for no extra cost than a filter with 1970's technology!

Consequences of poor dust managment choices

As a consequence of poor advice, many, (but not all), companies previously installed improvements to help air quality that were the cheapest solution tendered - maybe a ceiling fan, a series of small portable extractors that block up and leak dangerous invisible dust, a system that is just simply inadequate for the dust load and air volumes, especially if a factory has been reconfigured and machines added after inital commissioning. Many of these solutions may have been offered by HVAC specialists whose expertise lies in contolling whole environments, not LEV, which focuses on dealing with the dust issue exactly where the dust is generated.

Generally however, organisations in nearly all Australasian industries have failed to keep up with the advances in technology, and innovative features made available, for dust extraction developed by key leading European suppliers over 20 years ago.

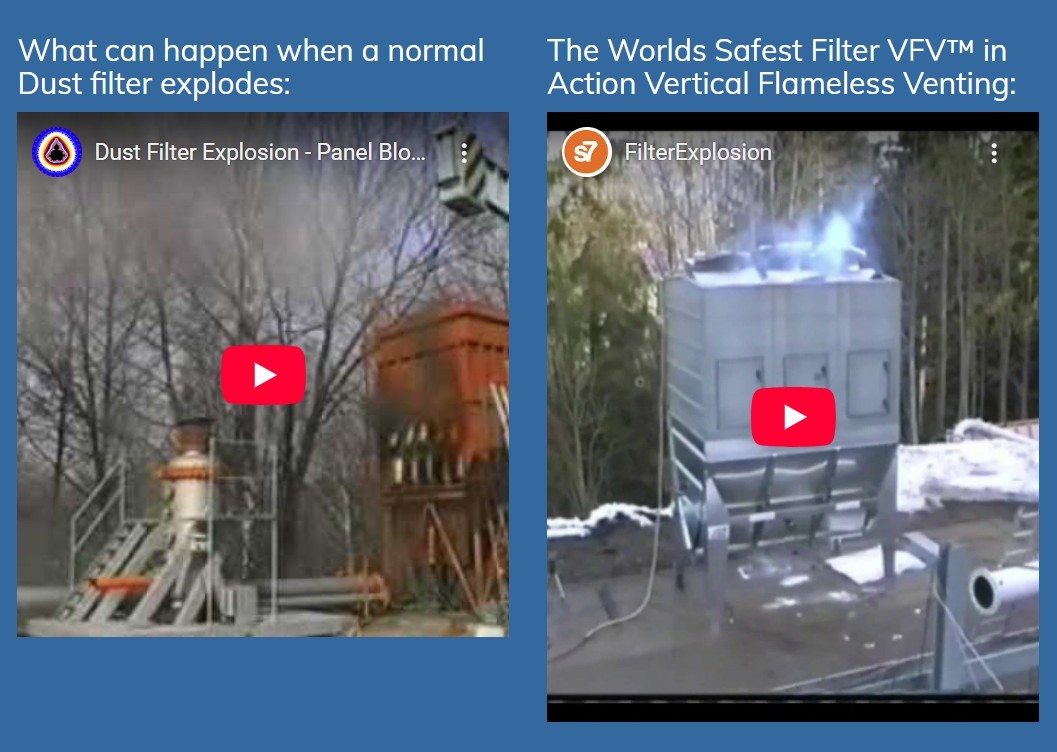

See our VFV in action! Check out our video proof with German FSA test house who have verified our unique safety release system.

See the Ebcam dust extraction filter range and learn more about how these advanced technologies: VFV™ and VARIpulse™ can assist your workplace to be compliant with the latest features available worldwide!

Our staff are visiting manufacturing and processing facilities every week and know the signs of poor dust extraction design - Contact Us to discuss your dust issues and get the best advice!

Effective Dust Extraction Solutions are the result of a broad knowledge of air volumes and dust loads/filter media, and should include knowledge of the latest technology and features available - Ask us how our unique features can be a benefit to your dust solution.
