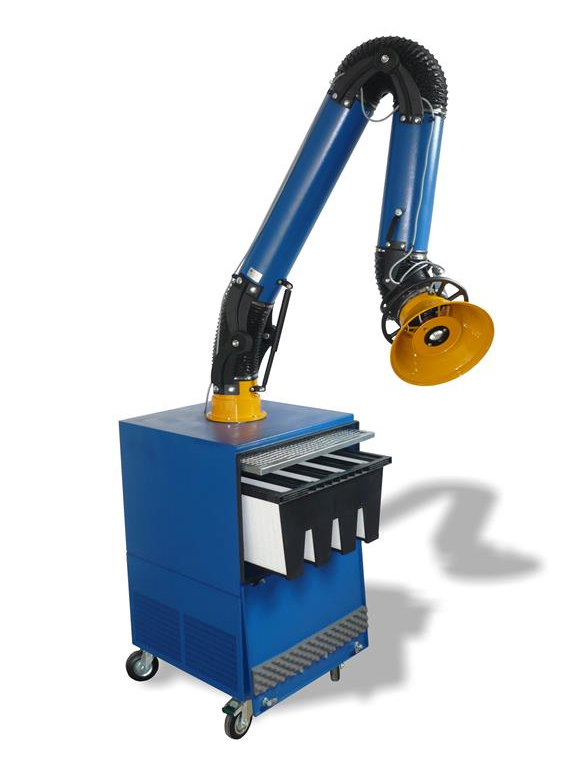

FumeCube I 3ph
Our smaller mobile filters are designed for mostly 'fume' extraction
The European designed and manufactured unit operates at 1000 (max. 1400)m3/h at the hood.
• Metal Mesh prefilter for for sparks
• F9 Main Cassette filter
• Designed to be fitted with one 160mm dia Fume Arm (price includes Fume Arm)
• Very quiet operation 74dB(A)

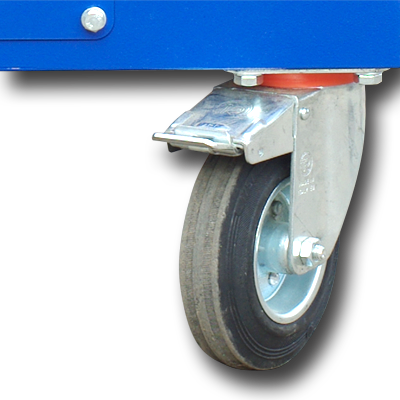

• Castor wheels including lock for easy positioning
- Requires 3P E+N Plug to be fitted by qualified electrician
| PRODUCT NAME | FumeCube 1 3ph |
| Manufactured | Europe |
| Power Requirement | 400V / 50Hz |
| Filter Capacity | 11m2 |
| Noise Level dB (A) | 74 dB (A) |
| Filtration Efficiency % | 95% at 4um |
| Fan kW | 1.1 Aluminium impellor |
| Swivelling Arm | Included 160mm 2 or 3m |
| H x W x D mm | 1025 x 650 x 681 |
| Weight kg | 110 |
| Mobility/Castors | 2 lockable |
| Cable Length | 4 |
| Installation | Indoor only |
| Casing Material | Metal welded powder coated |
| Extraction Arm dia. | 160mm / 2 or 3m reach |
| Airflow m3/h | 1000m3/h at hood |
| Filter 1 | Prefilter G2 Aluminium mesh |
| Filter 2 | Main Cartridge V Bank F9 |
| Plug included |
NOT included REQUIRES 3 PH 5 PIN E+N to be fitted by qualified electrician |
| Clean Air return to work area | Y |
|
Filter dirty warning
|
Filter Alarm
|
Call 1800 370 846 for more information.
