FumeCube 2
Our smaller mobile filters are designed for mostly 'fume' extraction
The Oskar European designed and manufactured unit is single phase and operates at 850m3/h at each hood.
• Metal Mesh prefilter for for sparks
• F9 Main Cassette filter

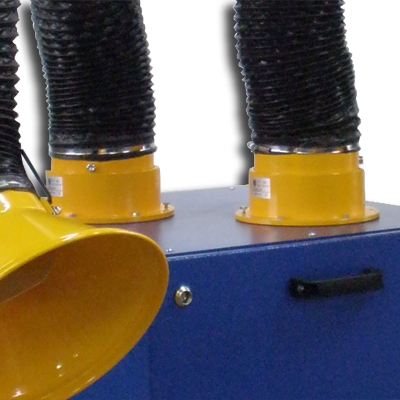

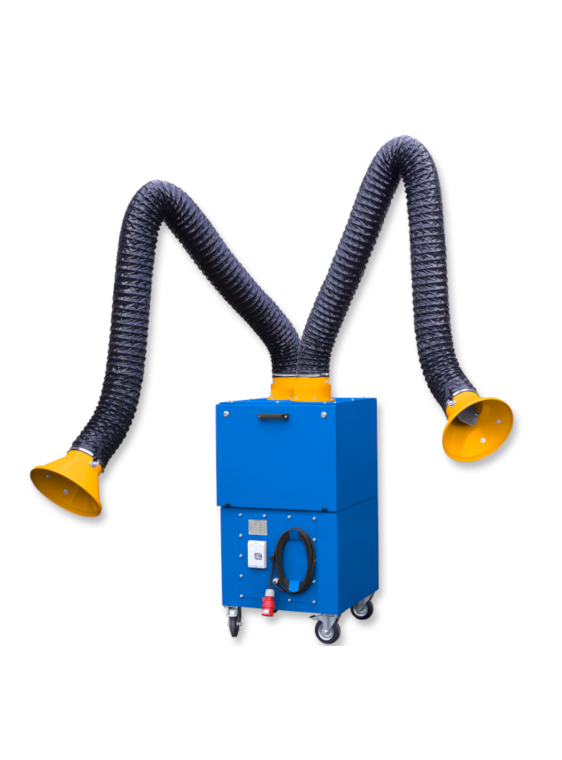

• Designed to be fitted with two 160mm dia Fume Arm ($7315 price includes 2x160/3 Flexi Fume Arms as per picture displayed - 2 x metal arm price $8999)
• Very quiet operation 74db(A)

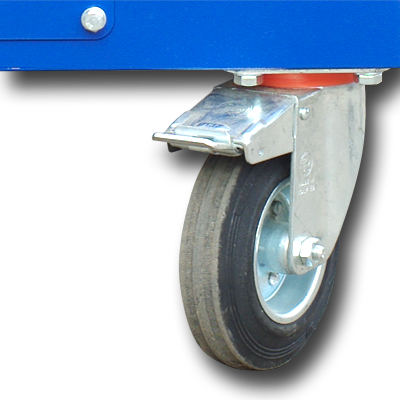

• Castor wheels including lock for easy positioning
Plug supplied with product
| PRODUCT NAME | FumeCube 2 |
| Manufactured | Europe |
| Power Requirement | 230V / 50Hz |
| Filter Capacity | 17m2 |
| Noise Level dB (A) | 74 dB (A) |
| Filtration Efficiency % | |
| Fan kW | 1.1 Aluminium impellor |
| Swivelling Arm |
included in Price x 2 160mm / 2-3 m |
| H x W x D mm | 1250 x 650 x 681 |
| Weight kg | 110 |
| Mobility/Castors | 2 lockable |
| Cable Length m | 4 |
| Installation | Indoor only |
| Casing Material | Metal welded powder coated |
| Extraction Arm dia. | 2x 160mm / 2 or 3m reach |
| Airflow m3/h | 850m3/h at each hood |
| Filter 1 | Prefilter G2 Aluminium mesh |
| Filter 2 | Main Cartridge V Bank F9 |
| Plug included | AUS/NZ 15A Industrial |
| Clean Air return to work area | Y |
|
Filter dirty warning
|
Filter Alarm
|
Call 1800 370 846 for more information.
