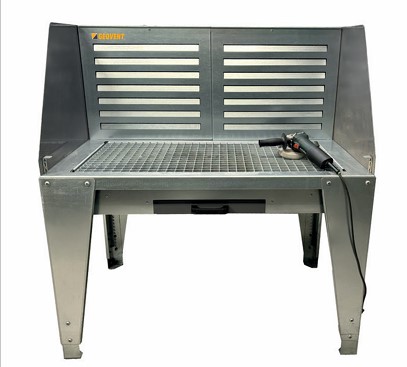

Grinding Benches

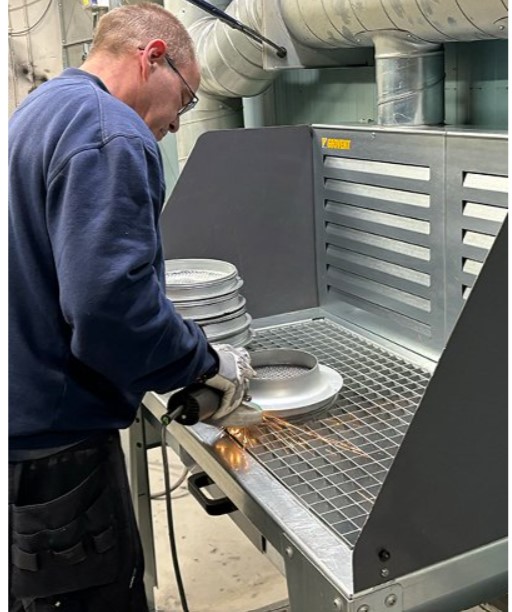

For WELDING and GRINDING operations, the Grinding Benches have back edge suction and flexible side panels should a large item need  to be accomodated in the ventilated area ie. the sides actually swing out.

The table has a GRATE as a tabletop which allows heavier particles to fall through into the underneath body of the table.  The table also has suction underneath the grate.

These heavier dust particles collect in a DRAWER for easy maintanence.

For easy transportation we deliver the table partially assembled, however once complete the legs they can be fixed to the floor.  The height can be adjusted if necessary.

Click here for more information

Airflow required :  2000 m³/h

Height :  1299 mm

Depth :     800 mm

Width :    1200 mm
