Fume Arms Metal Hanging
.jpg)
Fume Arms Metal Hanging
In stock now and delivered fully assembled, external hinging for ease of use and minimum maintenance. For simple fume extraction LEV (local exhaust ventilation) solutions, our Fume Arms are robust in quality at very competitive prices! Our customers agree these are the best welding arms available for industrial use.
From $799.00
FUME ARMS
Our stocked European manufactured Welding Fume Arms are fully assembled designed with :
• External joints to allow smooth air flow: no build up of debris on hinges to jam up
• Damper included on all models to improve fume extraction
Easy grab handle for correct positioning – a welding arm is only effective if correctly re-positioned as the welder works
• Galvanised tubes powder coated in blue
• Aluminium yellow hood (not plastic)
• Variety of sizes/reach to suit a small school welding area or laboratory or a large workshop requiring maximum reach
• Self supporting easy to position pivotal joints –swivel with safety stop

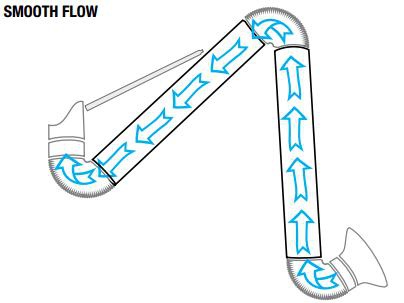

The best LEV solution : EXTERNAL HINGING = SMOOTH AIR FLOW
In stock in our Melbourne warehouse! Ring by midday for same day shipment.
- Next day delivery available for Melbourne customers
- 2-3 day delivery Australia-wide
General Specification Metal Arms Hanging:
| Manufactured | Europe |
| Installation | Hanging, indoor only |
| Tube material | Smooth steel powder coated : blue |
| Max. Op Temp | 80oC |
| Hood Material | Aluminium powder coated : yellow |
| Arms swivel mechanism | Rotating socket with safety stop |
| Noise | Low due to smooth metal tubes |
| Self Support mechanism | Internal support spring |
| Mobility | All round grab handle : backwards, forwards, sideways |
| Hinge mechanism | External - adjust on outside middle joint |
INSERT DIAG numbers parts
Model Details:
| Arm dia. mm | 75 | 100 | 160 | 200 |
| Arm reach m | 1 | 2 | 3 / 4 | 3 / 4 |
| Airflow at hood m3/h | 1000 | |||
| Hood dia inlet mm | 160 | 200 | 315 | 350 |
| Damper included | Y | Y | Y | |
| Weight (max.) | 6 | 8.5 | 30.5 | 45 |
| Wall Bracket included | Y | Y | Y | Y |
| Adaptor to fit fan | ||||
Call 1800 370 846 for more information.
