Fume Arms Stainless Foodgrade Hanging
STAINLESS FOODGRADE- HANGING
Our European manufactured Foodgrade Fume Arms are designed with :

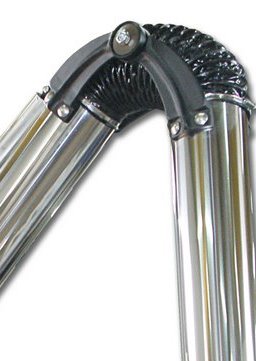

• External joints to allow smooth air flow: no build up of debris on hinges to jam up
Foodgrade flexi at joints
Anodised base to withstand regular use of washdown solvents
• Damper included on all models

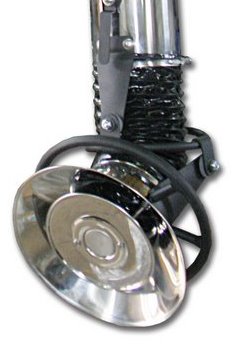

Easy grab handle for correct positioning – a fume arm is only effective if correctly re-positioned as the operator works
• STAINLESS Steel 304 Hood and Tubes
• Ideal for food and pharmaceutical use

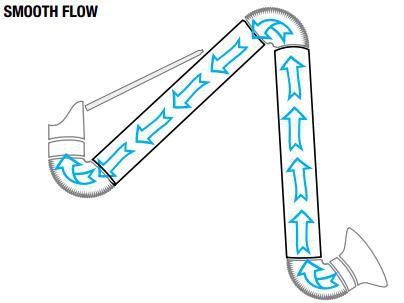

EXTERNAL HINGING = SMOOTH AIR FLOW
Ring by midday for same day shipment!
- Melbourne Customers: Next day delivery available
- Australia wide: 2-3 day delivery
General Specification Metal Arms Hanging and Standing:
| Manufactured | Europe |
| Installation |
Hanging (75-160 dia), indoor use Standing 75mm ONLY |
| Tube material | Stainless steel |
| Max. Op Temp | 80oC |
| Hood Material | Stainless Steel |
| Arms swivel mechanism | Rotating socket with safety stop |
| Noise | Low due to smooth metal tubes |
| Self Support mechanism | Internal support spring |
| Mobility | All round grab handle : backwards, forwards, sideways |
| Hinge mechanism | External - adjust on outdise middle joint |
| Flexible hinge material | Black as standard : Foodgrade, High Temp. or Anti static flex available as extra |
INSERT DIAG numbers parts
Model Details:
| Arm dia. mm | 75 Hanging/Standing | 100 Hanging | 160 Hanging |
| Arm reach m | 1 | 2 | 3 |
| Airflow at hood m3/h | |||
| Hood dia inlet mm | 160 | 200 | 315 |
| Damper included | Y | Y | |
| Weight | |||
| Wall Bracket included | Y | Y | Y |
| Adaptor to fit fan | |||
Call 1800 370 846 for more information.
