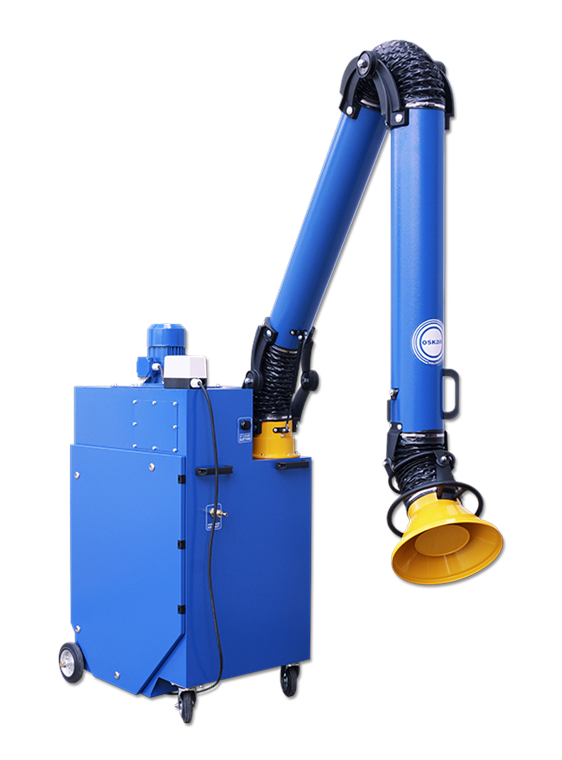

Fume DustKART 1
The European designed and manufactured unit is three phase with a heavy duty welded and powder coated construction.
- Aluminium impeller 1.1 kW fan unit
- Three stage filtration

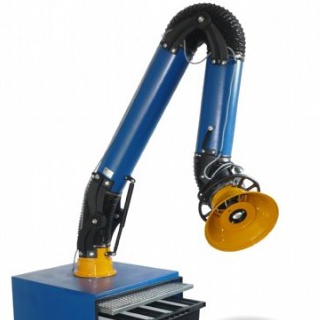

- 160mm/2 or 3m arm - 160/3 METAL Fume Arm icluded in price
- Standard manual compressed air cartridge cleaning system
- 10 litre compressed air tank
- Easy access dust drawers
- Simple cartridge maintenance and exchange
- 2 swivel casters with brakes for more mobility
Supplied with AS/NZ 15Amp 3 pin plug ready for immediate use
| PRODUCT NAME | DustKART 1 |
| Manufactured | Europe |
| Power Requirement | 3x400V / 50Hz |
| Filter Area | 18.3 m2 |
| Noise Level dB (A) | 72 dB (A) |
| Filtration Efficiency % | 99% at 5um |
| Fan kW | 1.1 Aluminium impellor |
| Swivelling Arm - included | 160mm 2/3 m |
| H x W x D mm | 1424 x 612 x 759 |
| Weight kg | 125 without arm |
| Mobility/Castors | 2 lockable |
| Cable length m | 4 |
| Installation | Indoor only |
| Casing Material | HEAVY DUTY Metal welded powder coated |
| DUST BIN Volume | 10 litre |
| Extraction Arm dia. | 160mm / 3m reach |
| Airflow m3/h | 1000m3/h at hood |
| Filter 1 | Prefilter G2 Aluminium mesh |
| Filter 2 | Main Cartridge |
| Filter 3 | G4 Carbon activated |
| Plug included | NOT FITTED Requires 3 ph E+N |
| Clean Air return to work area | Y |
|
Filter dirty warning Operation timer indicator |
Filter indicator |
|
COMPRESSED AIR |
for manual cartridge cleaning system |
| Compressed Air Tank | 10 litre |
| Air Pressure | 5-5.5 Bar |
| Compressed Air connection | G1/2 |
Call 1800 370 846 for more information.
